EveScript Language Reference¶

Basic Syntax¶

The basic form of an EveScript is as follows:

# if statement
if (expression) {
  action1(...)
  action2(...)
}

if (expression) {
  ...
}

# call action directly
action3()

An exmaple script may look like this:

if ($currentTime matchCron "0 0 * * *" && $lightSensor > 20 || $lightSensor < 10) {
    say("Only run on midnight 00:00")
    play("music.mp3")
}

# another condition
if ($currentTime matchCron "* * * * *") {
    say("run every minute")
    say(true)
}

In the above script, $currentTime, $lightSensor are called variables. They are the data sources of this script. And the matchCron, >, ||, < are operators, where matchCron is a custom operator, while others are built-in operators. And the say, play are actions.

The if statement can be nested too.

# nested if
if (expr1) {
  if (expr2) {
    action()
  }
}

You can also use if…else statement.

# if else statement
if (expr1) {
  action1()
} else if (expr2) {
  action2()
} else {
  action3()
}

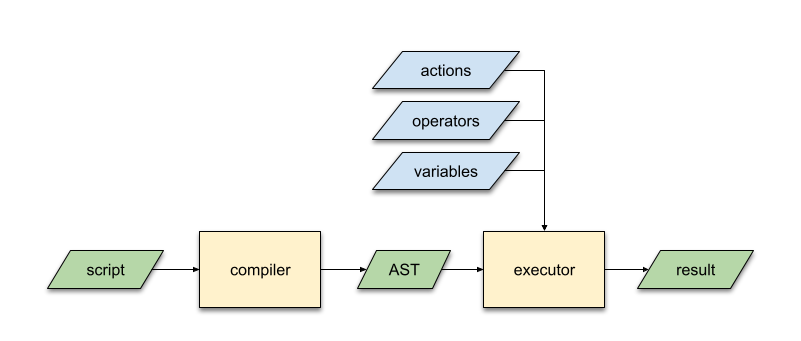

The following figure shows how a script is compiled and executed.

All variables, actions, and custom operators must be provided when executing this script. See Actions, Operators, and Variables for details.

Literals¶

EveScript supports the following types for literals:

Numbers: Only integers (3, 10, -4) and decimals (0.6, -2.4) are supported. Scientific notation such as 3e10 is NOT supported.
String: A string must be quoted with double quotation marks: "Hello, world". Single quotation mark is not supported.
Boolean: true or false.

Statements¶

Statements are similar to the if statements in other languages. It uses the C-style:

criteria must be placed in parenthesis
use { } around the code block (i.e. actions)

Variables¶

Variables are part of the expressions in the statement. When creating a EveScriptExecutor, variables must be provided so that they can be used in the script.

Contrast to the usual concept of “variable” in other languages, variables in EveScript are NOT memory units for storing values. They are more like small functions that act as data sources, such as reading data from hardware I/O ports, reading the system clock, or fetching data from Internet.

When creating an executor, provide a dict as the variables field of config, in which keys are the variable names and the values are the functions that provide data. The functions must take no parameters, and return a number, a string, or a boolean value.

The following code shows how to create a variable:

# Python code
def lightSensor():
  # read the sensor value from the light sensor
  return read_value_from_light_sensor()

# the key of the dict is the name of the variable
variables = {
    '$lightSensor': lightSensor,
}

executor = EveScriptExecutor({
    'variables': variables,
    'actions': {},
    'operators': {},
})

With this definition, the variable $lightSensor is useable in the script.

# EveScript code
if ($lightSensor > 10) {
    ...
}

Operators¶

EveScript provides some built-in operators in order to construct expressions.

Operator	Description
`\|\|`	logical OR
`&&`	logical AND
`!`	logical NOT
`==`	equal to
`!=`	not equal to
`<`	less than
`<=`	less than or equal to
`>`	greater than
`>=`	greater than or equal to

However, you can also define custom operators to implement your own logical operations. Similar to variables, custom operators are also small functions or lambdas that take two parameters (i.e. custom operators must be binary operators), and return a boolean value.

The following code snippet demonstrates how to create and use a custom operator:

# Python code
from datetime import datetime
from croniter import croniter

def matchCron(t, cron):
    """An operator that matches the provided time `t` with the `cron` string."""
    return croniter.match(cron, t)

def currentTime():
    """A variable that returns current system time."""
    return datetime.now()

executor = EveScriptExecutor({
    'variables': { '$currentTime': currentTime },
    'operators': { 'matchCron': matchCron },
    'actions': {},
})

With this definition, $currentTime and matchCron can be used in the code to implement a crontab-like trigger:

# EveScript code
if ($currentTime matchCron "0 0 * * *") {
    ...
}

The following table lists the precedence of operators.

Precedence	Operators
1	`!`
2	`<`, `<=`, `>`, `>=`, `==`, `!=`, all custom operators
3	`&&`
4	`\|\|`

Actions¶

Actions are the functions listedn in the { } block. They must be defined and provided when instantiating the EveScriptExecutor.

An action function can take zero or more parameters, and has no return value.

Note there is no semicolon ; at the end of each action.

The following code snippet shows how to define an action:

# Python code
def lightSensor():
  # read the sensor value from the light sensor
  return read_value_from_light_sensor()

def say(text):
  """Define an action `say` that prints a message on the console."""
  print(text)

# the key of the dict is the name of the variable
variables = {
    '$lightSensor': lightSensor,
}

executor = EveScriptExecutor({
    'variables': { '$lightSensor': lightSensor },
    'actions': { 'say': say },
    'operators': {},
})

With this definition, say(text) can be called in the scripts:

# EveScript code
if ($lightSensor > 10) {
    say("It's daytime now!")
}

EBNF Definition¶

<script> ::= { <statement> }

<block>  ::= "{" { <statement> } "}"
          |  <statement>

<statement> ::= <if_statement>
             |  <action>

<if_statement> ::= "if" "(" <expr> ")" <block> [ "else" <block> ]

<expr>   ::= <term> "||" <expr>
          |  <term>

<term>   ::= <factor> "&&" <term>
          |  <factor>

<factor> ::= "(" <expr> ")
          | "!" <factor>
          | <predicate>

<predicate> ::= <operand> <operator> <operand>
            | <boolean>

<operator>  ::= ">"
             |  ">="
             |  "<"
             |  "<="
             |  "=="
             |  "!="
             |  keyword

<operand>   ::= variable
             |  <const>

<const>     ::= string
             |  number
             |  <boolean>

<boolean>   ::= 'true'
             |  'false'


<action>   ::= keyword "(" <params> ")"

<params>   ::= <param> { "," <param> }
            | empty

<param>    ::= <operand>
